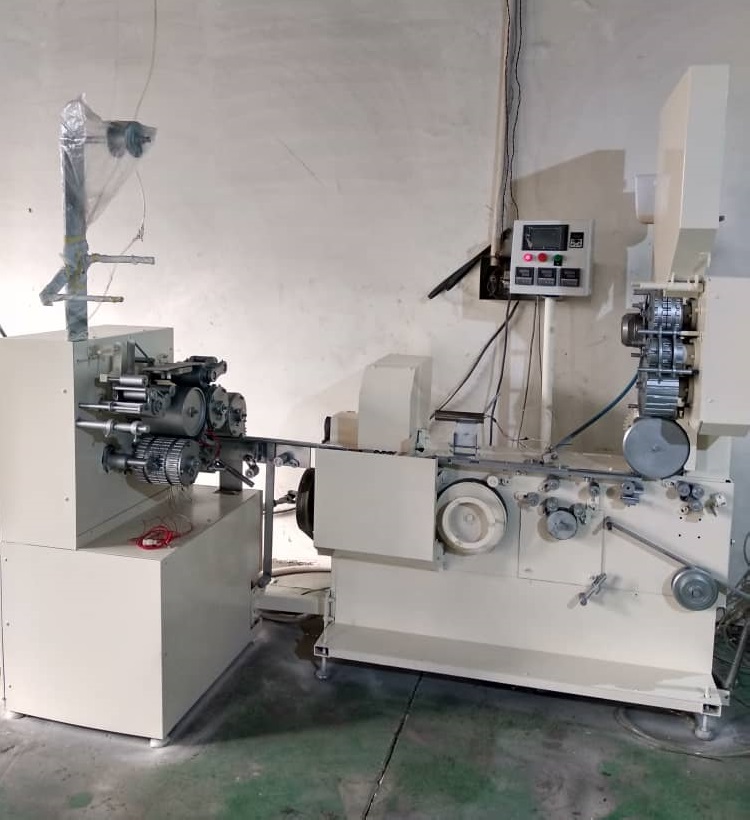

empty cigarette tube making machine, empty cigarette tube maker,Hollow cigarette tubes machine
|
I． Technical Specifications of Combination |
|
||
|
1. Tube Diameter |
Φ8.0mm |
|
|
|
2. Total Tube Length |
84±0.5mm |
|
|
|
3. Filter Length |
15±0.5mm |
|
|
|
4. Filter Plug Length |
60±0.5mm (4 cuts) or 90±0.5mm (6 cuts) which one need to confirm before order |
|
|
|
5. Product speed |
min 600-800 Tube/min |
|
|
|
6. Combination Efficiency |
over 80% |
|
|
|
7. Total Weight of Combination |
900 Kg |
|
|
|
8. Power Requirement |
|
|
|
|
⑴Rate Power |
5 KVA |
|
|
|
⑵Voltage |
380±10%V(Three Phases) |
||
|
⑶Frequency |
50HZ |
|
|
|
V． MJ-4 Demands for the environment and raw and auxiliary material ： |
|||
|
1.：Requirements for Environmental Condition |
|||
|
⑴Ambient Temperature |
24-28° |
||
|
⑵Relative Humidity |
62%∽68% |
||
|
2. Compressed Air |
5.5 bar |
||
|
⑴Start/Stop |
1.2Cubic Meter/min |
||
|
⑵Rotation |
0.6 Cubic Meter/min |
||
|
3. Cigarette Paper: The paper bobbin made of hemp, the main technical specification complies with the following |
|||
|
⑴Width |
28±0.5mm |
||
|
⑵Anti-tension strength |
>0.85KN/M |
||
|
⑶Extension rate |
>1.6% |
||
|
⑷Moisture |
6%±1.5% |
||
|
⑸No. of joints |
<1/1000M |
||
|
⑹Outside Diameter of the Paper Bobbin |
<530mm |
||
|
⑺Core Diameter of the Paper Bobbin |
120mm |
||
|
4. Cork paper bobbin |
|
||
|
⑴Width |
Max 35mm |
||
|
⑵Thickness |
0.04 mm∽0.05 mm |
||
|
⑶Outer Diameter of the Cork Paper Bobbin |
360mm∽380mm |
||
|
⑷Core Diameter of the Cork Paper Bobbin |
65mm |
||
|
5.. Filter Plug: Made of Cellulose acetate, the main technical specification should comply with the followings. |
|||
|
⑴Filter Plug Length |
60±0.5mm or 90±0.5mm |
||
|
⑵Filter Plug Diameter |
Φ7.8-7.9 mm |
||
|
⑶Plug Moisture |
<7% |
||
|
6. Viscosity of PVA |
|
||
|
⑴ for maker |
800mpa.s∽1200mpa.s |
||
|
⑵ for assembler |
2100mpas∽3100mpa.s |
||
